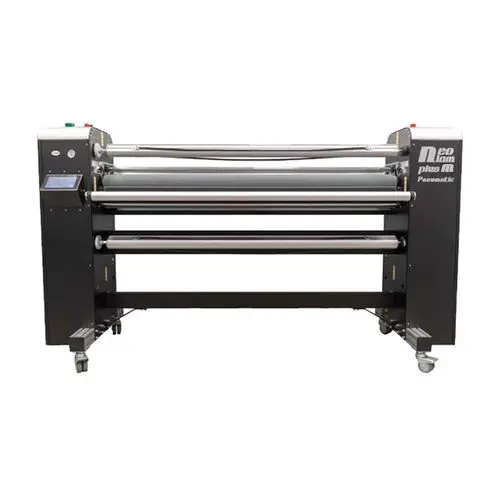

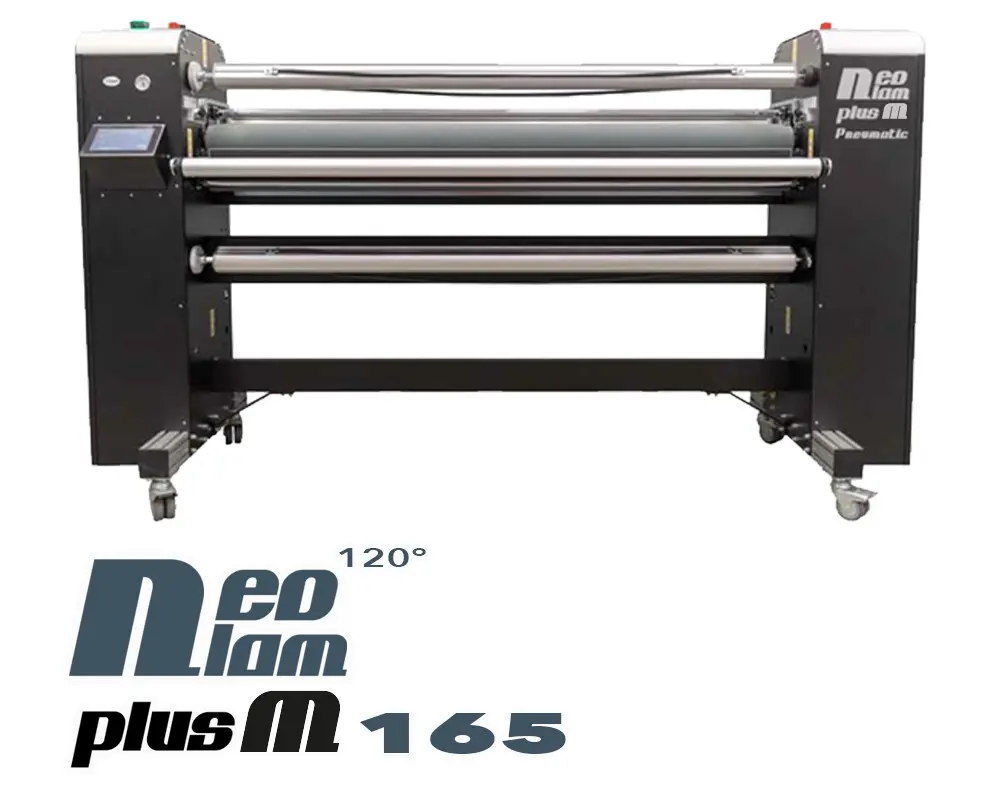

Neolt NEOLAM PLUS M 165 120°C Pneumatic Laminator (NL165P/M)

  • Description

    NEOLT NEOLAM PLUS M BANNER GRAPHICS

    Neolt NEOLAM PLUS M 165 120°C Pneumatic Laminator (NL165P/M):

    Designed and built to adapt to the widest range of applications, from vehicle wrapping to interior decoration and paper converting, to expand to the most diverse applications of visual communication and sign-making.

    Thanks to the use of pneumatic technology, the Neolam Plus series reduces machine setup and preparation times and therefore the need to employ specialized personnel. Contrary to laminators with electric pressure technology, the possibility of error in calculating the thickness is eliminated.

    The laminator can be used for both hot and cold lamination with both rollers temperature being adjustable between 0 and 120°C expanding the range of supported applications.  The Auto-Speed function also maintains a constant rolling temperature during use.

    The Neolam Plus M also features a user-friendly touch screen interface with intuitive, easy-to-use software.

    **Maximum working width: 1650mm. Maximum media thickness of 50mm. 2 x 0-120°C rollers**

    Please refer to the "Other related models" tab for a link the the wider Neolam Plus M 205

    NEOLT NEOLAM PLUS S BANNER GRAPHICS

    MAIN FEATURES:

    • PLUG & PLAY Neolt Neolam Plus M laminators are equipped with an internal compressor - Plug in, let the machine reach its temperature and start working!
    • SELF-ADAPTIVE Independent pistons automatically adjust to different thicknesses and the manages the flatness defects of the substrate. The rollers get adapted to the surface in real time.
    • FLEXIBLE it's possible to pre-set the pressure applied to each substrate. Once the material is placed is always possible to make adjustments to the pressure.
    • ADDITIONAL OPTIONS / ACCESSORIES Please refer to "Options/Accessories" Tab for full list.

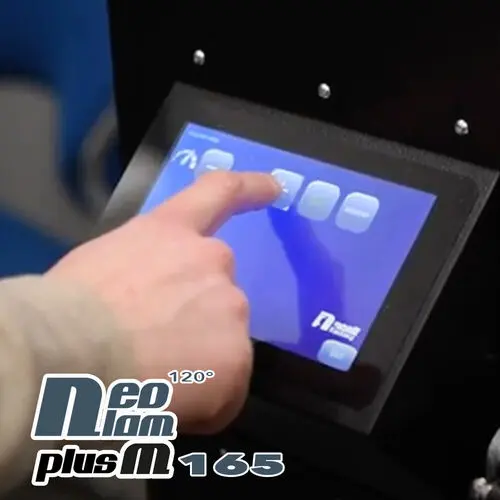

    • TOUCH SCREEN LCD DISPLAY:  With intuitive and easy-to-use software
    • AUTO SPEED FUNCTION: Maintains a constant rolling temperature during use



    NEOLT NEOLAM PLUS C GRAPHIC
  • Other related models

    NEOLAM PLUS S SERIES:

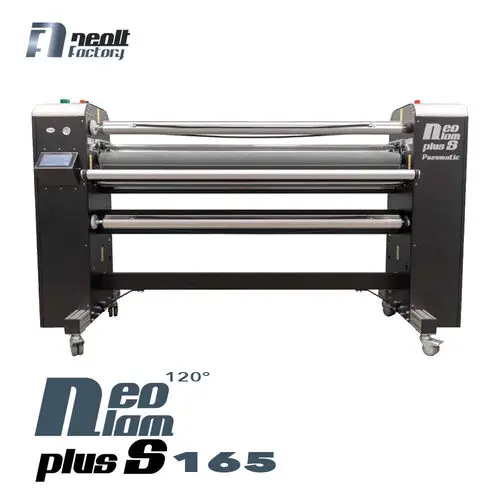

    Neolt | NEOLAM PLUS S 165 | 120°C Pneumatic Laminator | NL165P/S



    NEOLAM PLUS C SERIES:

    Neolt | NEOLAM PLUS C 165 | 50°C Pneumatic Laminator | NL165P/C

    Neolt | NEOLAM PLUS C 205 | 50°C Pneumatic Laminator | NL205P/C



    NEOLAM PLUS M SERIES:

    Neolt | NEOLAM PLUS M 165 | 120°C Pneumatic Laminator | NL165P/M

    Neolt | NEOLAM PLUS M 205 | 120°C Pneumatic Laminator | NL205P/M

  • Tech specs

    Max working width: 1650mm

    Max speed: 6m/min.

    Max laminating thickness: 50mm.

    Height working table: 970mm.

    Net weight: 240Kg.

    Electrical requirements: 230v - 50Hz / 110v - 60Hz.

    Power consumption: Max. 9 A – 2000 W.

    Compressed air: 6 Bar

  • Options/Accessories

    OPTIONS NEOLAM PLUS S 165
    VERTICAL CUT (1650)

    NL165P/1650H


    RE-WINDER

    NL165P/S/1650C



    ROLL HOLDER WITH CLUTCH

    NL165P/1650I


  • "COLD" Lamination VS "HOT" Lamination

    COLD LAMINATION ADVANTAGES:

    • Requires less maintenance and set-up time, inexpensive, and easier to use.
    • pressure from the rollers of a cold laminator will remove the unsightly bubbles that sometimes occur with a laminate.
    • In general, colours and quality of the printed document are typically better in comparison. The heat of a hot laminator can cause colours to bleed or degrade.
    • Excellent option for adhesive decorations and decals because only one side of a graphic can be laminated.



    HOT LAMINATION ADVANTAGES:

    • Provides more durable protection and typically a faster laminate job.
    • Additional laminating applications including a variety of heat settings.
    • Materials used in a hot laminator generally cost much less than the materials used in a cold laminator.
    • The high heat generated by a hot laminator can damage some materials, inks, and colours. To protect documents from the impact of heat, special plastic laminates can be used.
    • It may take some time and experience to master the skill of using a hot laminator successfully. If the users are not careful, the heating elements can cause serious danger to them.
  • Video

Download a Brochure

  • Product Caption

    Neolt NEOLAM PLUS M 165 120°C Pneumatic Laminator (NL165P/M) - DATA SHEET
